Intangible Interaction: Project 2

Curios Box

moodboard and idea...
compoments we used...

Step by Step:

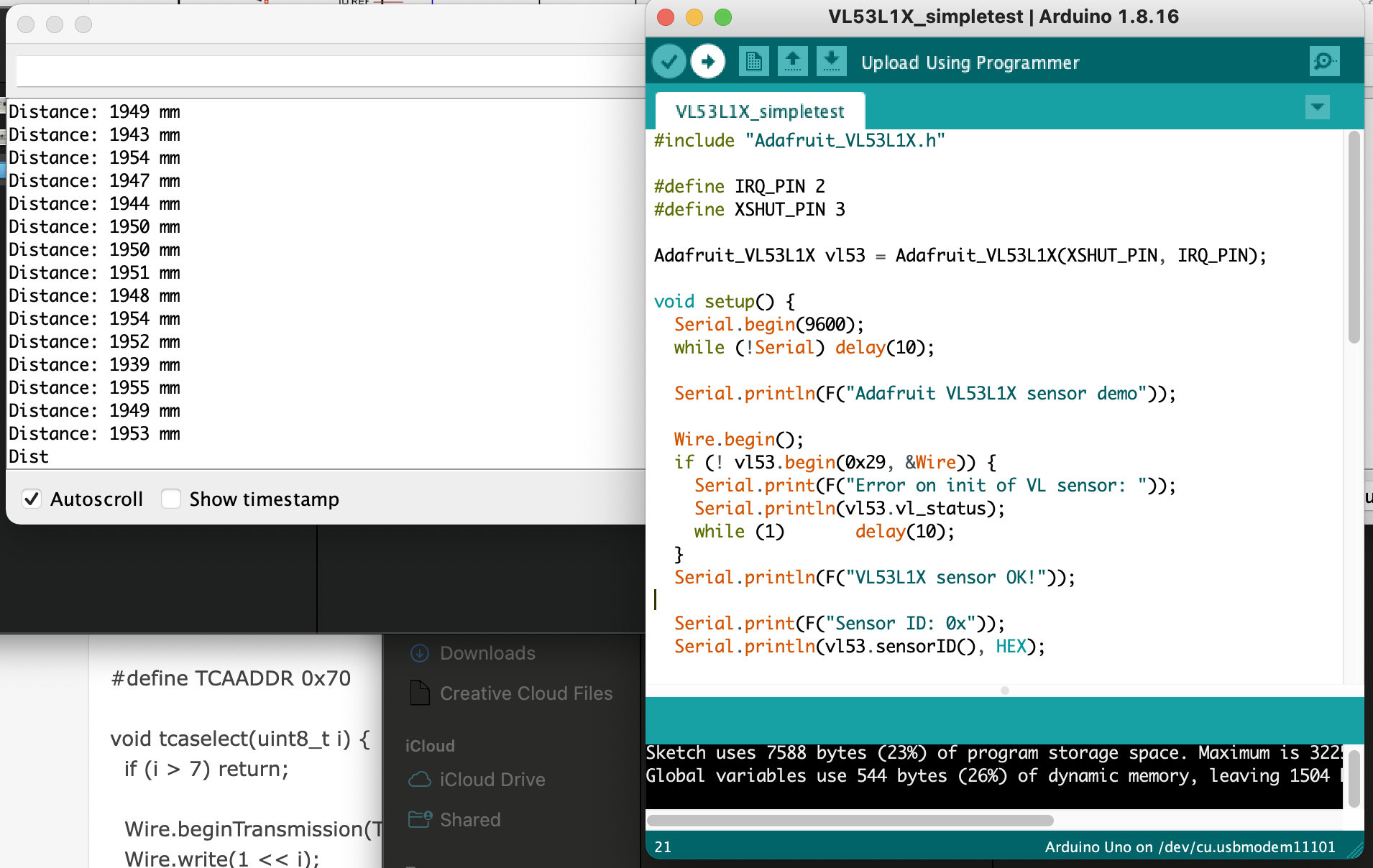

only ONE time of flight testing,
worked very well and very the measurement if vert accurate.



TWO time of flight with Multiplexer


- which port it detected, the reading I have (left) is different from the readings on the instructions (right).




- confused with tcaselect, I connected the SCL and SDA on each ToF to SC0 and AD0, SC1 and SD1, is the tcaselect refer to the port we are using?
-We changed the code based on the components we using. However it still gave us the wrong sensor reading which the instructions gave us. Probably there still bugs in the code.



- We also read this when doing this step.
